TOPPING E30 DAC AK4493 XU208 32bit/768k
Features:
1.AK4493 DAC chip
AK4493 is a new generation of premium model AK4490 from AKM.
2.Support DSD512 and PCM32bit/768kHz
E30 uses 2nd generation XMOS XU208, USB supports up to PCM32bit768kHz and DSD512, which is far more than CD and SACD.
3.CS8416 receiver
CS8416 is currently the S/PDIF receiver with lowest jitter, compatible with optical and coaxial connection.
4.Commonly used inputs
E30 supports USB, optical and coaxial inputs which cover a variety of commonly used occasions, such as computer, mobile phone OTG,digital turntable and media player, TV and set-top box.
5.DAC + Pre-amp application
TOPPING D50s ES9038Q2M*2 DAC Bluetooth 5.0 LDAC DECORDER
Features:
Support Highest DSD512(Native) and PCM 32Bit/768kHz
Bluetooth 5.0 LDAC transmission
2*ESS ES9038Q2M SABRE HIFI DAC
THD+N as low as 0.00025%
XMOS XU208 and customized drivers
Auto on/off& Auto screen close
USB/Coaxial/Optical DAC application
DAC+Pre-amplifier/ Bluetooth receiver/Tablet and phone DAC application

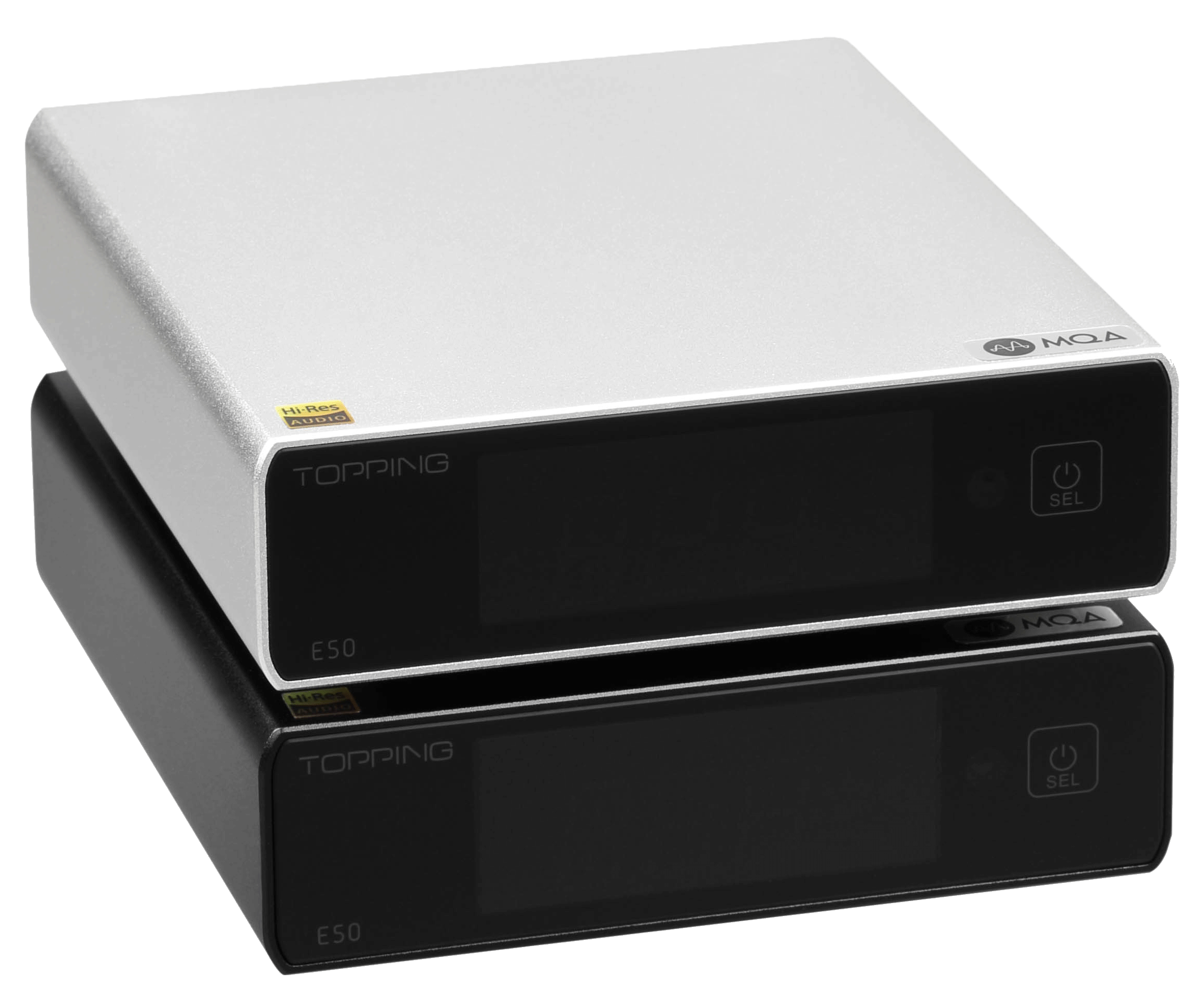

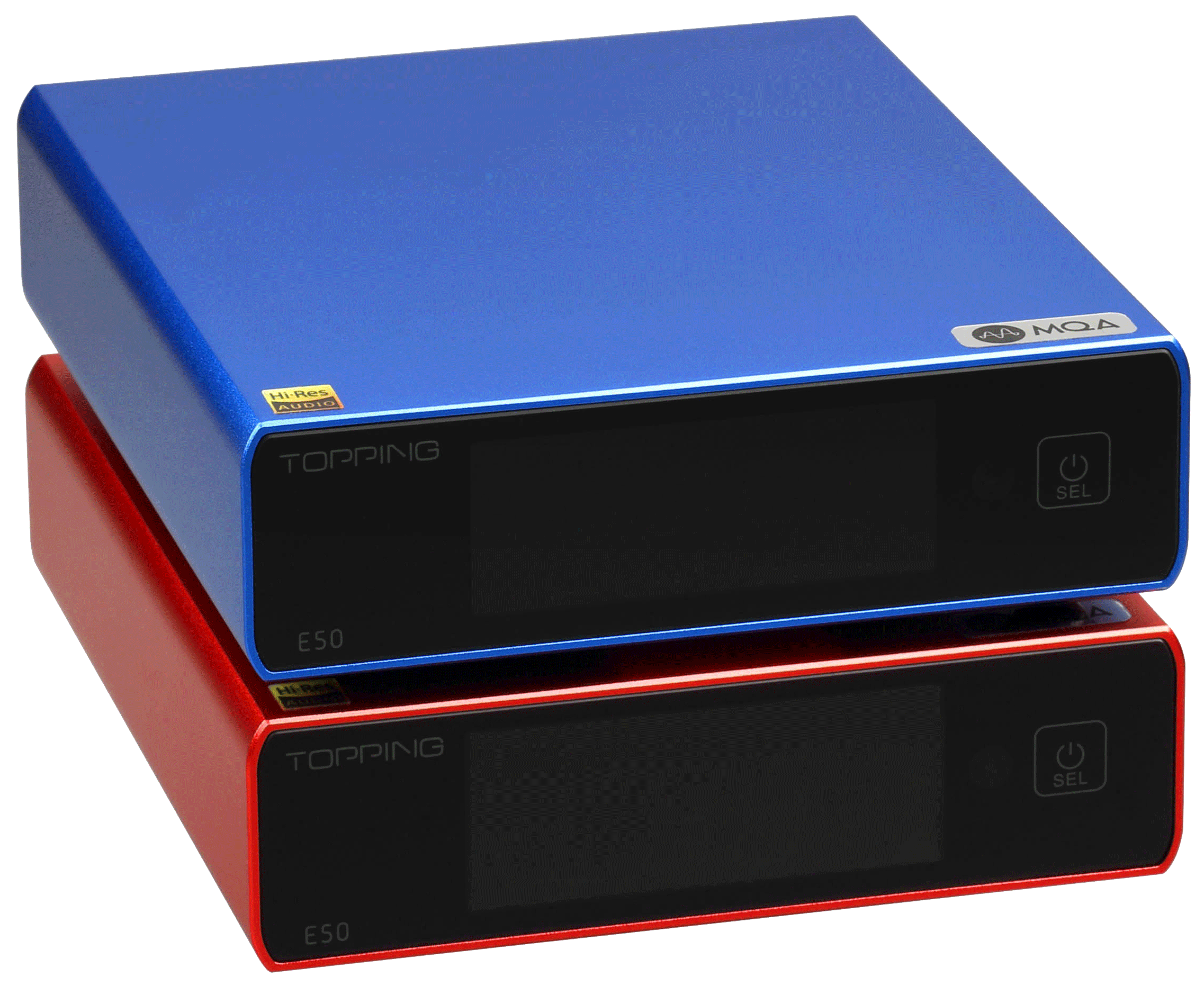

TOPPING E50 DAC ES9068AS MQA XU216 32Bit/768kHz DECORDER
ES9068AS DAC Chip
E50 uses the latest high-performance DAC chip ES9068AS. Our excellence in design and engineering provides realistic and transparent sound quality.
Specifications:
USB IN: PCM 44.1kHz-768kHz/16bit-32bit
DSD DSD64-DSD512 (Native), DSD64-DSD256 (DoP)
MQA Full Decoding
COAX/OPT IN: PCM 44.1kHz-192kHz/16bit-24bit
DSD DSD64(Dop)
MQA Renderer Decoding
Output Impedance: 20Ω(SE), 100Ω(BAL)

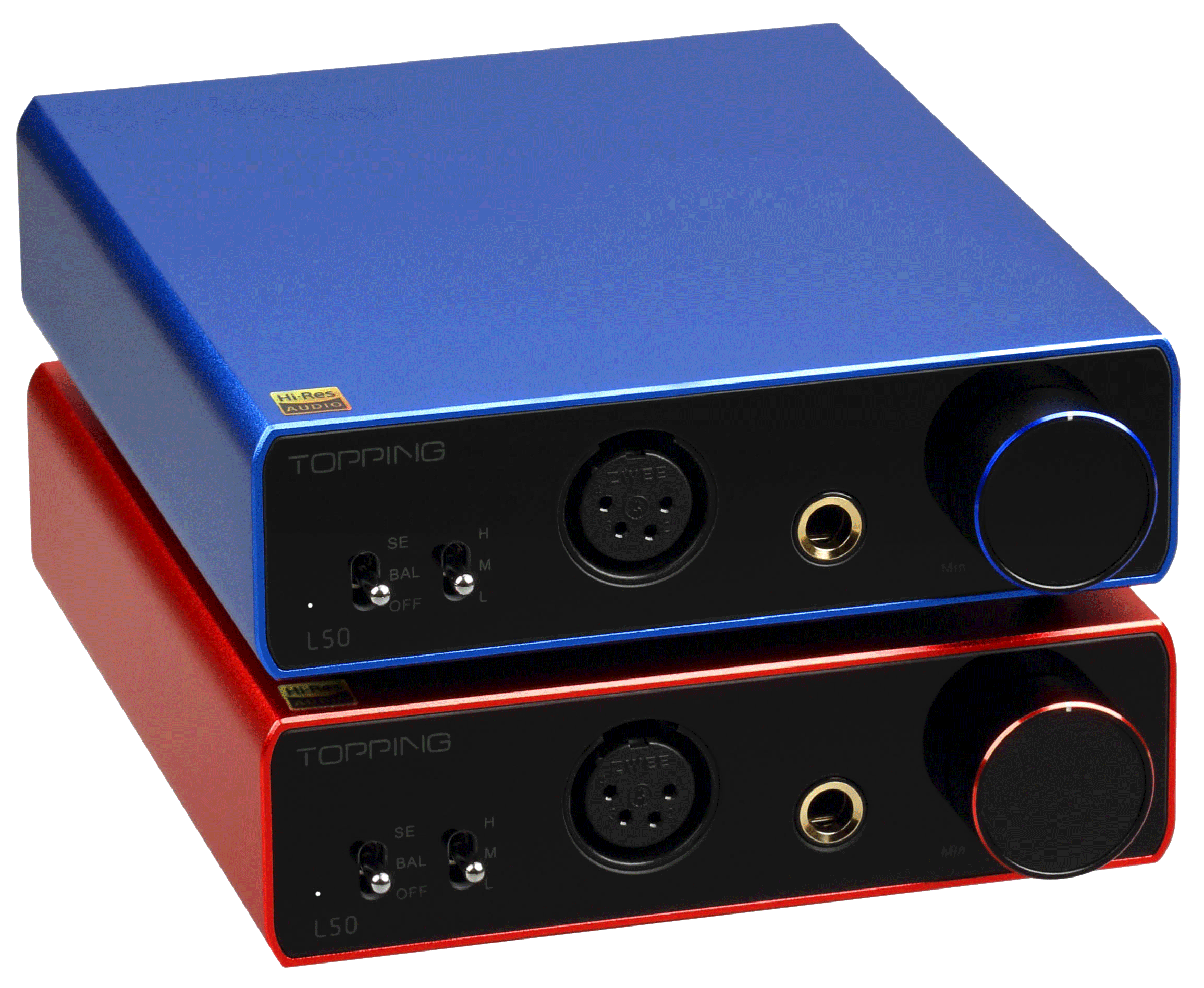

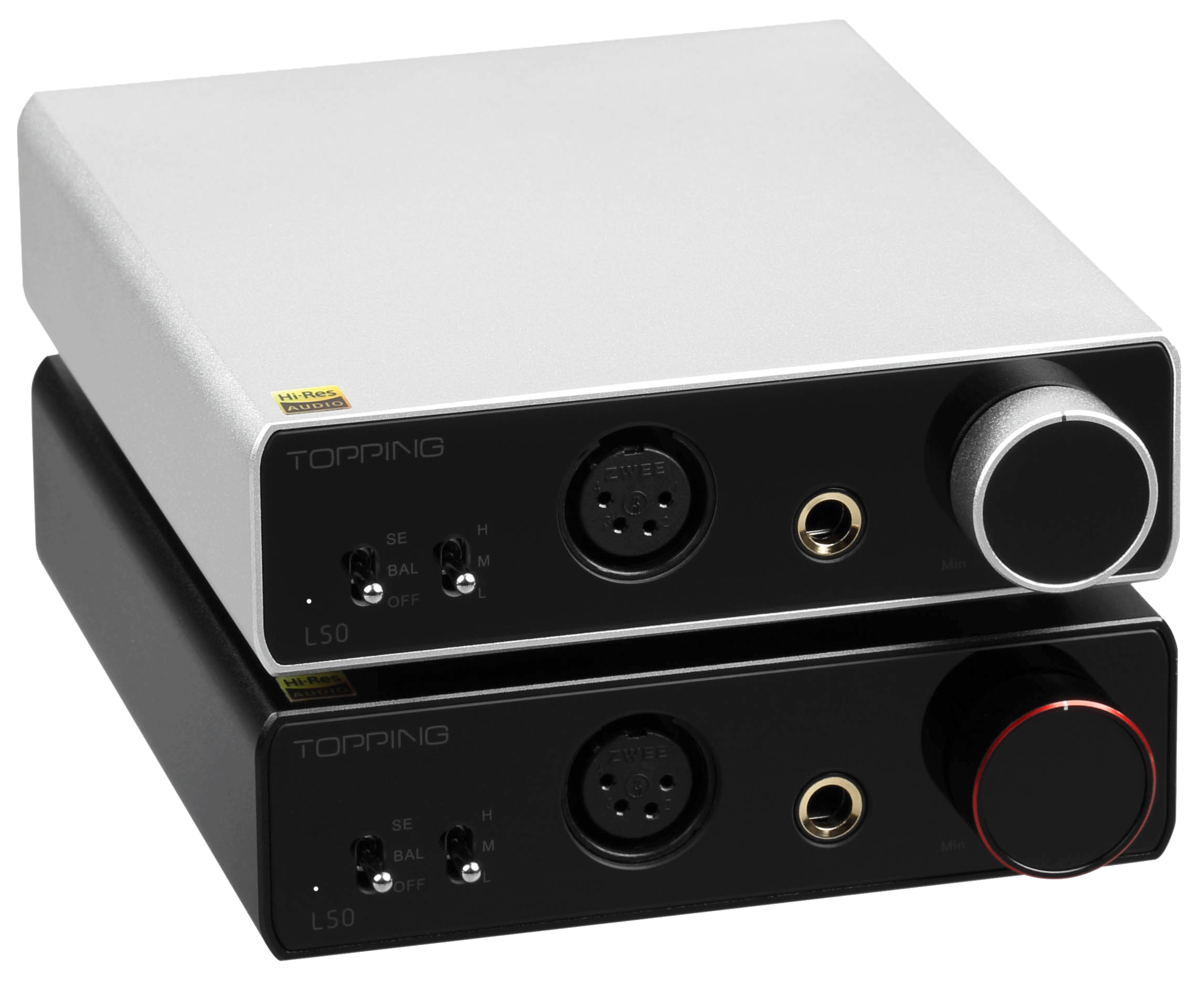

TOPPING L50 Amplifier NFCA Modules 0.3uV Ultra Low Noise Cost-effective Headphone Amp
L50 adopts the New NFCA circuit.
Redesigned new NFCA circuit based on the same working principle as the one in A30 Pro. It provides 2x power at 300 Ohm compared to L30.
The new circuit shares the same 0.3uV ultra-low noise and 145dB dynamic range as well as 0.00006% THD+N.
With the help of NFCA, L50 easily reaches the top of the industry, and it has almost perfect performance regardless of distortion, dynamic range, and multi-tone testing.
L50 has three gain options. Covering a wide gain range is sufficient to meet the needs of low-sensitivity full-sized over-ears to high-sensitivity 1EMs. With the help of extremely low noise 0.3uV, even lEMs will not hear any background noise.

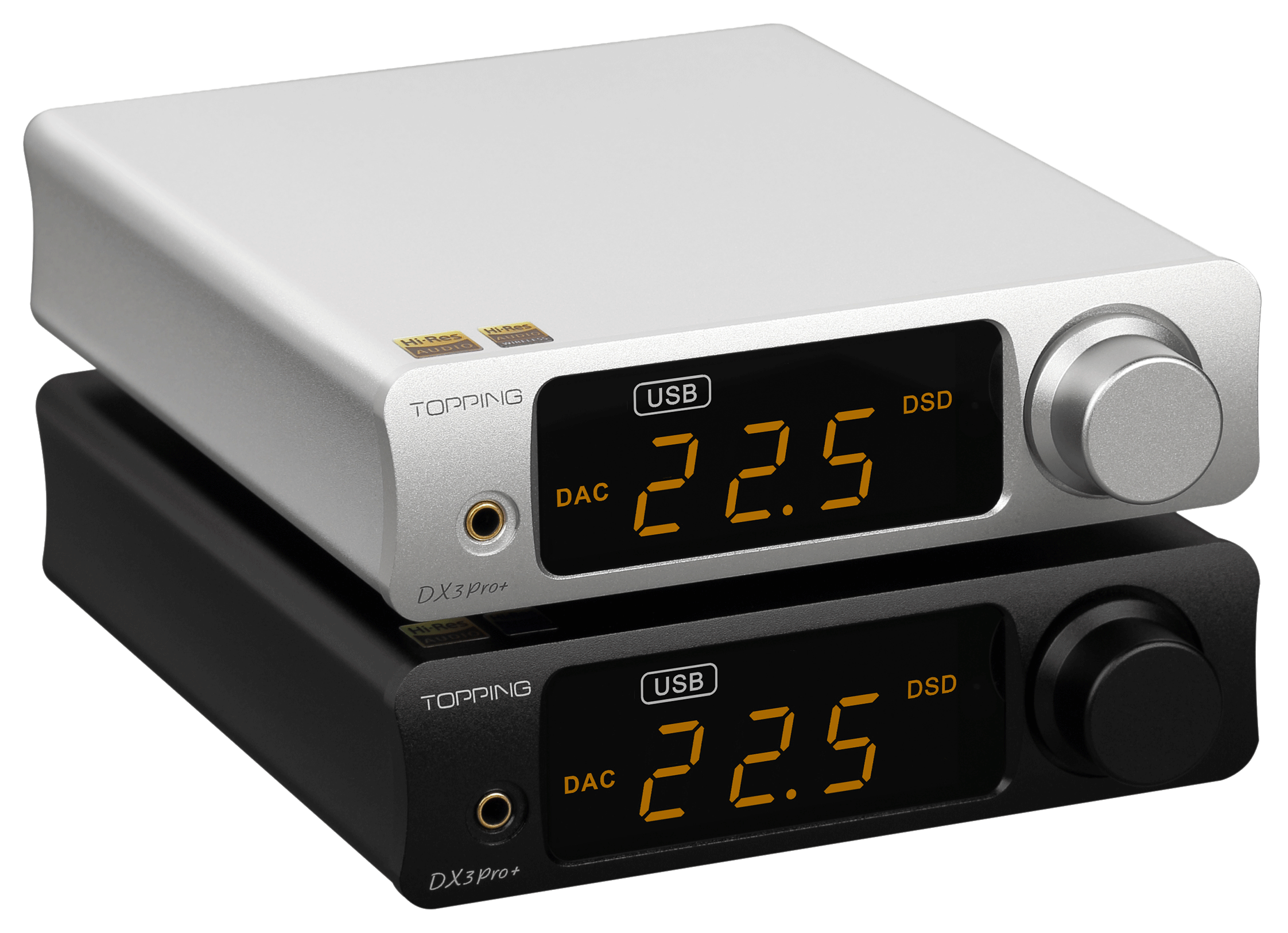

TOPPING DX3 Pro+ Bluetooth 5.0 LDAC ES9038Q2M DAC NFCA Headphone Amplifier
Product Highlights:
Four output modes: Headphone Amp, Headphone Amp+Line out, DAC, and Pre-amplifier.
QCC5125 chipset, supports LDACIAAC/SBCIAPTXIAPTX LL/APTX HD protocol
2nd generation 8 core XMOS XU208, USB input supports up to PCM32bit768kHz and DSD512 native
Optimized NFCA circuit, with ultra low noise and distortion
32ohm load: 1800mW x2 | 300ohm load: 250mW x2
Two gain settings, +6dB Lo Gain | +19dB Hi Gain
